Description
FDU224KXZE1
Duct Connected – Indoor Unit
FDU224KXZE1
Duct connected VRF indoor unit with a nominal cooling capacity of 22.4 kW.
Technical Specifications
| Nominal cooling capacity | kW | 22.40 |
| Nominal heating capacity | kW | 25.0 |
| Power consumption Cooling | kW | 1.16 – 1.20 |
| Power consumption Heating | kW | 1.16 – 1.20 |
| Power Source | – | 1 Phase 220-240V 50Hz |
| Exterior Dimensions (H x W x D) | mm | Units:379 x 1600 x 893 |
| Net Weight | kg | 80.0 |
| Indoor Unit Air Flow | m3/min | 80/ 72/ 64/ 56 |
| Sound Pressure Level | dB(A) | 52/ 50/ 47/ 45 |
| Piping Size – Liquid line | Ø mm | 9.52 (3/8″) |
| Piping Size – Gas Line | Ø mm | 19.05 (3/4″) |

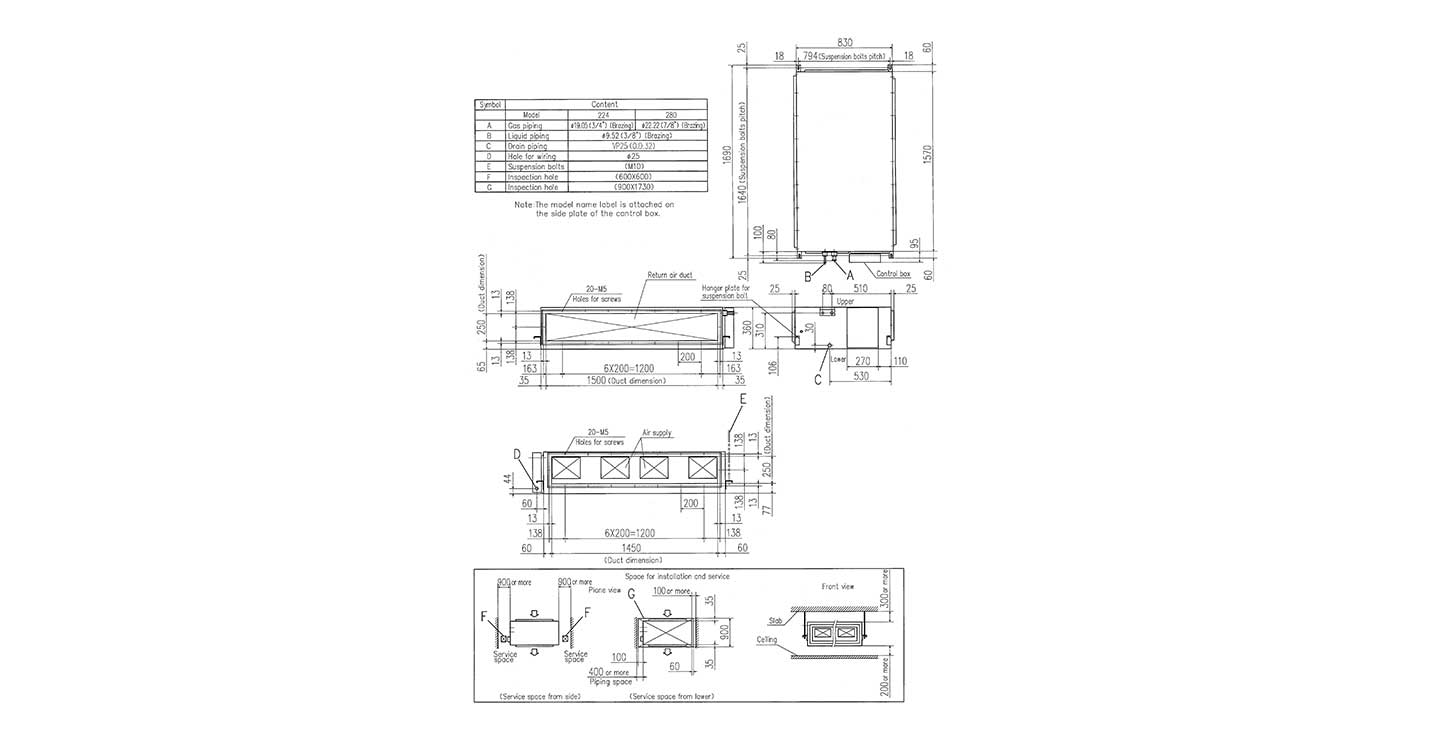

Schematics
