VRF (KX) – Duct Connected / FDU280KXZE1

Category:

Description

FDU280KXZE1

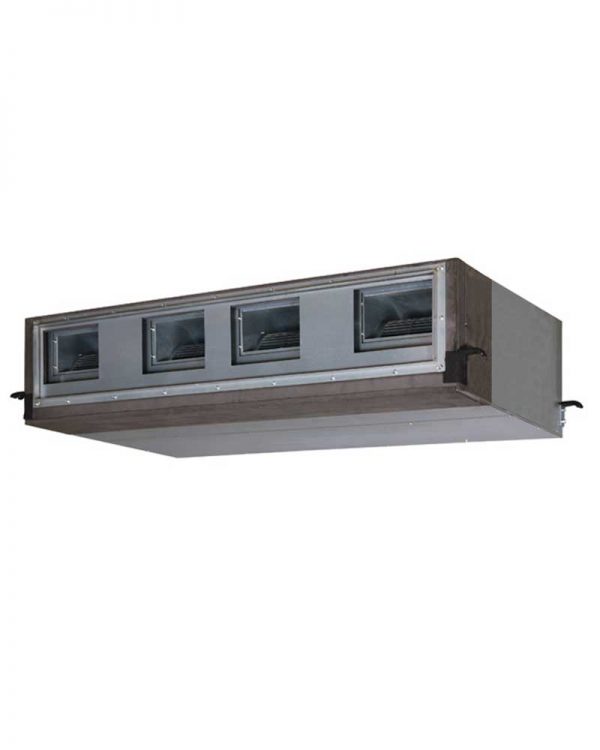

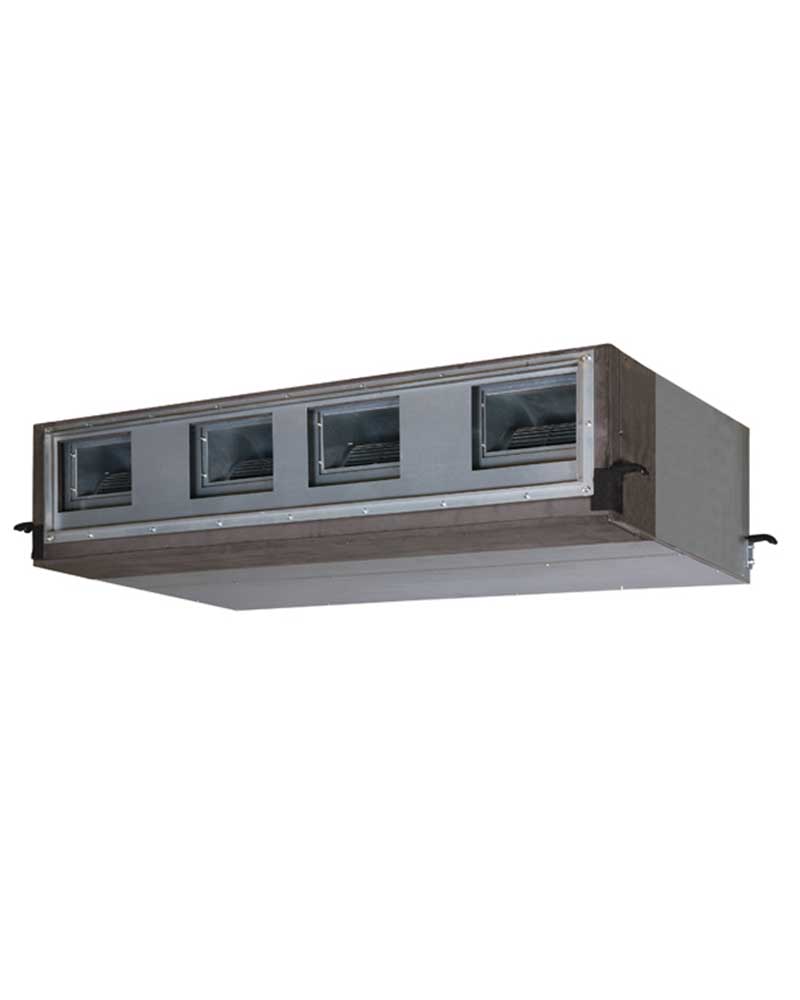

Duct Connected – Indoor Unit

FDU280KXZE1

Duct connected VRF indoor unit with a nominal cooling capacity of 28.0 kW.

Technical Specifications




General Data
Nominal cooling capacity kW 28.0
Nominal heating capacity kW 31.50
Power consumption Cooling kW 1.16 – 1.20
Power consumption Heating kW 1.16 – 1.20
Power Source 1 Phase 220-240V 50Hz
Exterior Dimensions (H x W x D) mm Units:379 x 1600 x 893
Net Weight kg 89.0
Indoor Unit Air Flow m3/min 80/ 72/ 64/ 56
Sound Pressure Level dB(A) 52/ 50/ 47/ 45
Piping Size – Liquid line Ø mm 9.52 (3/8″)
Piping Size – Gas Line Ø mm 22.22 (7/8″)

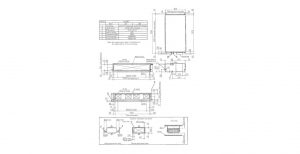

Schematics
