Air Conditioning Splits – Outdoor Unit
SCM71ZM-S
RAC outdoor unit with a nominal cooling capacity of 7.1 kW
Technical Specifications
Data Sheet (Printer Friendly)
| Nominal cooling capacity (min-max) | kW | 7.1 (1.8 – 8.8) |
| Nominal heating capacity (min-max) | kW | 8.6 (1.5 – 9.4) |
| EER (Energy Label) | – | 4.08 |
| COP (Energy Label) | – | 4.3 |
| Exterior Dimensions (H x W x D) | mm | Units: 750 x 880 (+73) x 340 |
| Net Weight | kg | 62.0 |
| Sound Pressure Level (Cooling/Heating) | dB(A) | 52 / 54 |
| Power Source | – | 1Phase, 220 – 240V, 50Hz |
| Inrush current (220/230/240v) | A | 9.2 / 8.8 / 8.4 |
| Max. running current | A | 20.0 |
| Power consumption (cooling) | kW | 1.74 (0.48 – 2.75) |
| Power consumption (heating) | kW | 2.00 (0.60 – 3.35) |
| Ref. Max Piping Length | m | Max. 70 |
| Vertical Height differences / Outdoor is higher/lower | m | Max. 20 / Max. 20 |

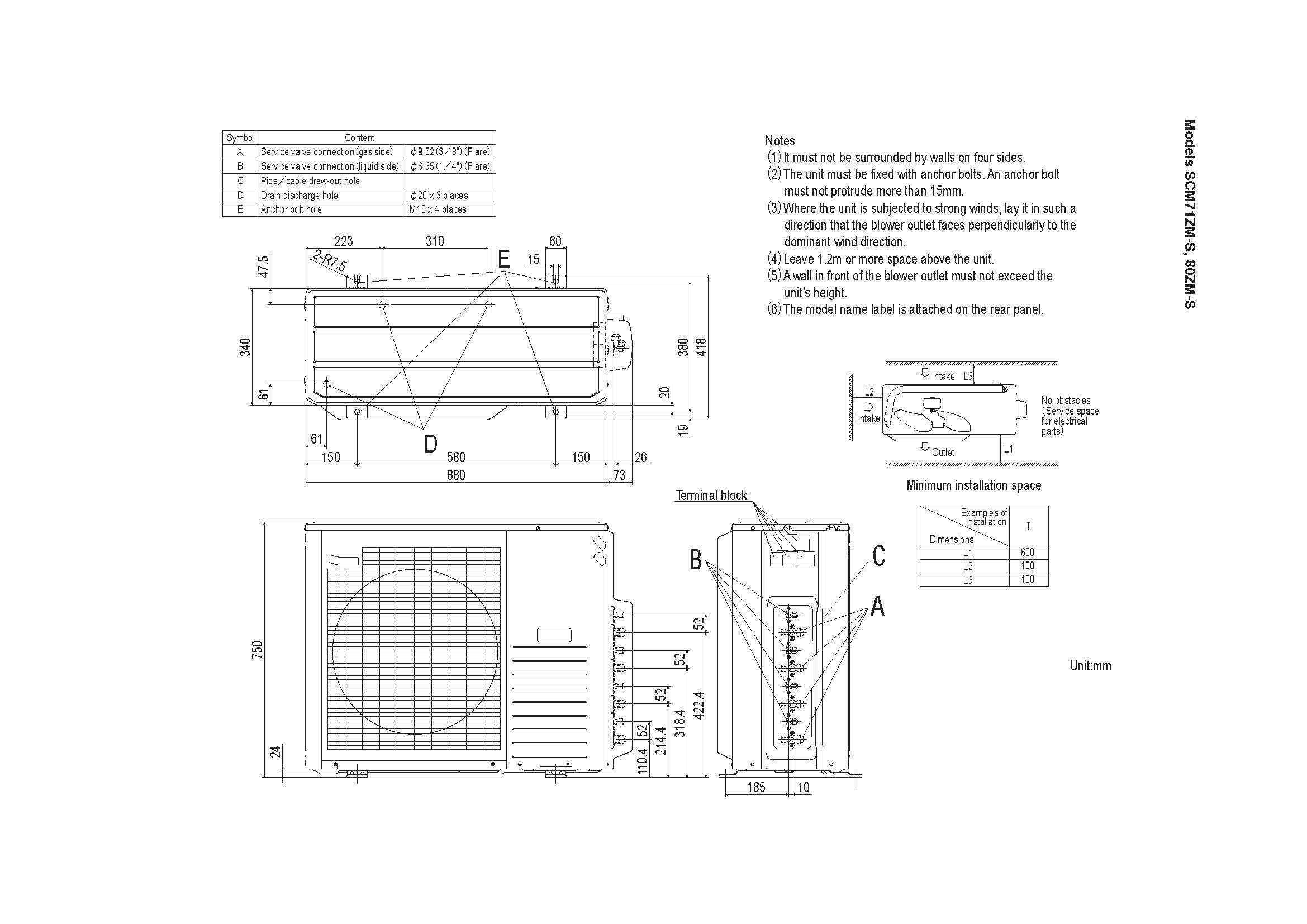

Schematics
