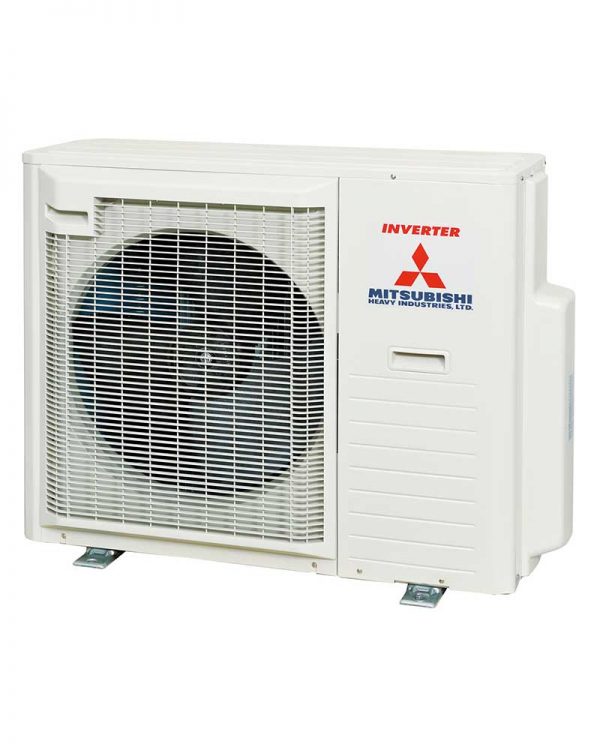

Air Conditioning Splits – Outdoor Unit

SCM80ZM-S

RAC outdoor unit with a nominal cooling capacity of 8.0 kW.

Technical Specifications


Data Sheet (Printer Friendly)



General Data
Nominal cooling capacity (min-max) kW 8.0 (1.8 – 9.2)
Nominal heating capacity (min-max) kW 9.3 (1.5 – 9.8)
EER (Energy Label) 3.7
COP (Energy Label) 4.12
Exterior Dimensions (H x W x D) mm Units: 750 x 880 (+73) x 340
Net Weight kg 62.0
Sound Pressure Level (Cooling/Heating) dB(A) 54 / 54



Electrical Data
Power Source 1Phase, 220 – 240V, 50Hz
Inrush current (220/230/240v) A 10.4 / 10.0 / 9.5
Max. running current A 20.0
Power consumption (cooling) kW 2.16 (0.48 – 2.83)
Power consumption (heating) kW 2.26 (0.26 – 3.43)
Installation
Ref. Max Piping Length m Max. 70
Vertical Height differences / Outdoor is higher/lower m Max. 20 / Max. 20

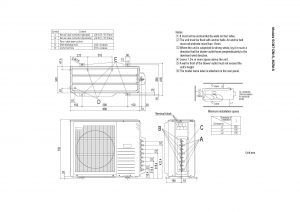

Schematics
