Multi indoor units – RAC Ceiling cassette / FDTC35VF

Description

Ceiling cassette – Indoor Unit

FDTC35VF

Ceiling cassette RAC indoor unit with a nominal cooling capacity of 3.5 kW.

Technical Specifications


Data Sheet (Printer Friendly)



General Data
Nominal cooling capacity kW 3.5
Nominal heating capacity kW 4.5
Exterior Dimensions (H x W x D) mm Unit: 248 x 570 x 570 Panel: 35 x 700 x 700
Net Weight kg 18.5 (Unit: 15 Panel: 3.5)
Air Flow Cooling (Hi/Me/Lo) m3/min 11 / 9.5 / 9 / 7
Air Flow Heating (Hi/Me/Lo) m3/min 11.5 / 10 / 9 / 8
Sound Pressure Level Cooling (Hi/Me/Lo) dB(A) 41 / 40 / 36 / 30
Sound Pressure Level Heating (Hi/Me/Lo) dB(A) 43 / 42 / 35 / 32

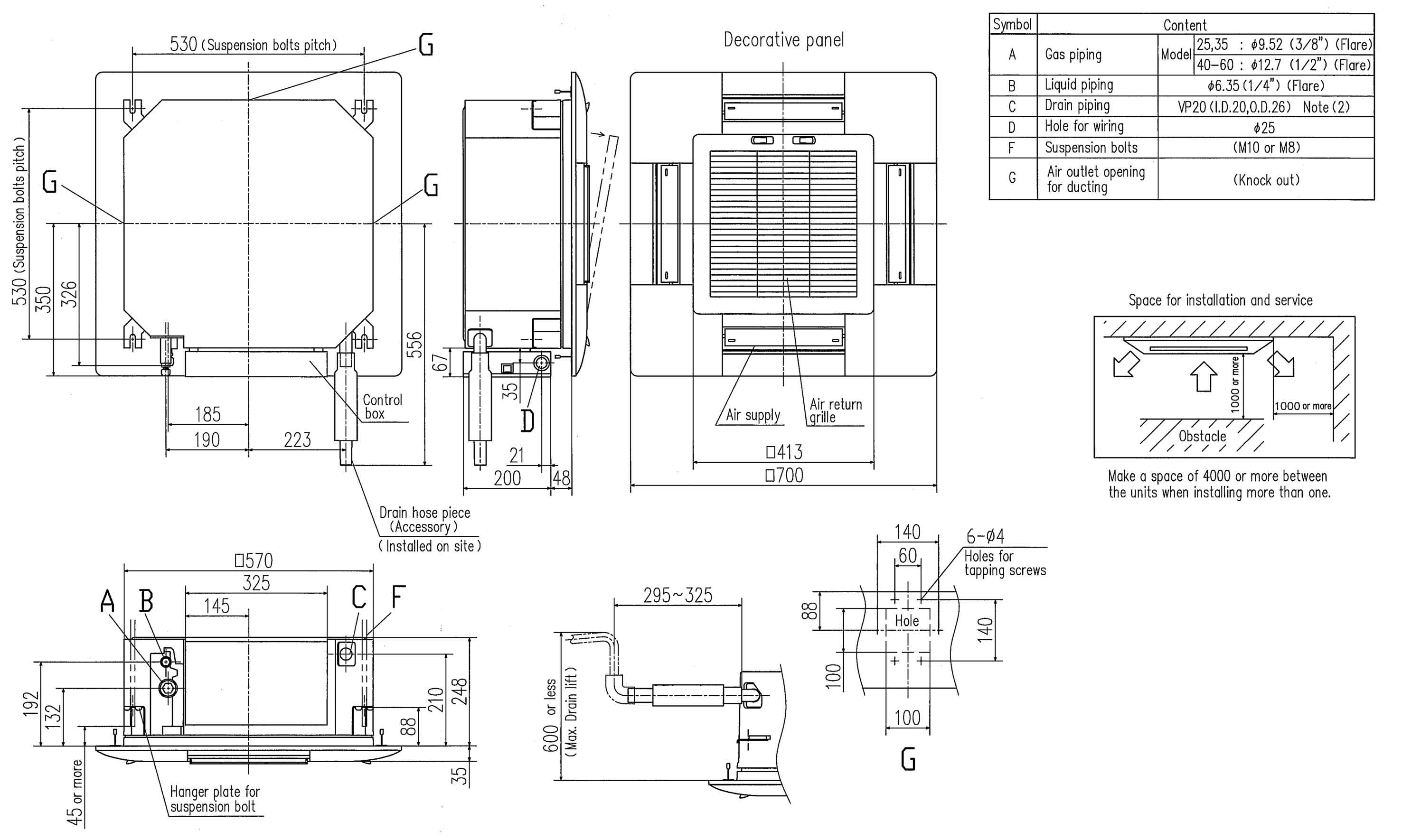

Schematics
