VRF (KX) – Ceiling Cassette / FDT140KXE6F

Category:

Description

FDT140KXE6F

Ceiling Cassette – Indoor Unit

FDT140KXE6F

Ceiling cassette VRF indoor unit with a nominal cooling capacity of 14.0 kW

Technical Specifications




General Data
Nominal cooling capacity kW 11.0
Nominal heating capacity kW 16.0
Power consumption Cooling kW 0.15 – 0.15
Power consumption Heating kW 0.15 – 0.15
Power Source 1 Phase 220-240V 50Hz
Exterior Dimensions (H x W x D) mm Unit: 298 x 840 x 840; Panel: 35 x 950 x 950
Net Weight kg Unit: 27.0 Panel: 5.50
Indoor Unit Air Flow m3/min 37/ 30 / 27 /23
Sound Pressure Level dB(A) 51/ 42 / 40 / 37
Piping Size – Liquid line Ø mm 9.52 (3/8″)
Piping Size – Gas Line Ø mm 15.88 (5/8″)

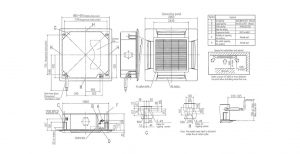

Schematics
