Single Splits – PAC Low Static Pressure Duct Connected / FDUM100VSXVF2

Description

FDUM100VF2

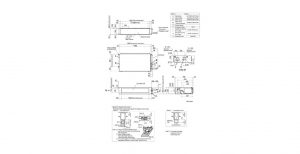

Low Static Pressure Duct Connected – Indoor Unit

FDUM100VSXVF2

Middle pressure duct connected PAC indoor unit with a nominal cooling capacity of 10.0 kW.

Technical Specifications




General Data
Nominal cooling capacity (min-max) kW 10.0 (4.0 – 11.2)
Nominal heating capacity (min-max) kW 11.2 (4.0 – 16.0)
Exterior Dimensions (H x W x D) mm Unit:280 x 1370 x 740
Net Weight kg 54
Air Flow Cooling (Hi/Me/Lo) m3/min 36 / 28 / 25 / 19
Air Flow Heating (Hi/Me/Lo) m3/min 36 / 28 / 25 / 19
Sound Pressure Level Cooling (Hi/Me/Lo) dB(A) 44 / 38 / 36 / 30
Sound Pressure Level Heating (Hi/Me/Lo) dB(A) 44 / 38 / 36 / 30



Schematics

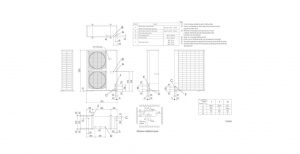

Low Static Pressure Duct Connected – Outdoor Unit

FDC100VSX
PAC outdoor unit with a nominal cooling capacity of 10.0 kW.

Technical Specifications






General Data
Nominal cooling capacity (min-max) kW 10.0 (2.8 – 11.2)
Nominal heating capacity (min-max) kW 11.2 (2.5 – 16.0)
EER (Energy Label) 3.73
COP (Energy Label) 3.71
Exterior Dimensions (H x W x D) mm 1300 x 970 x 370
Net Weight kg 105
Sound Pressure Level (Cooling/Heating) dB(A) 48/50
Energy class (Cooling/Heating) A/A+
SEER “Average climate”/(Energy label) 5.19
SCOP “Average climate”/(Energy label) 4.10





Electrical Data
Pdesignc kW 10.0
Pdesignh (@-10°C) kW 13.0
Annual electricity consumption (Cooling/Heating) kWh/a 675/4441
Power Source 3 Phase 380-415V, 50Hz, 380V, 60Hz
Inrush current (220/230/240v) A 5
Max. running current A 15
Power consumption (Cooling/Heating) kW 2.68 / 3.02



Installation
Refrigerant (GWP) R410A (2088)
Designated heating season Average
Ref. Piping Size (Liquid/Gas) Ø mm 9.52(3/8″) / 15.88(5/8″)
Ref. Max Piping Length m Max. 100
Vertical Height differences / Outdoor is higher/lower m Max. 30 / Max. 15
