Single Splits – PAC Floor Standing / FDF100VSXVD2

Category:

Description

FDF100VD2

Floor Standing – Indoor Unit

FDF100VSXVD2

Floor standing PAC indoor unit with a nominal cooling capacity of 10.0 kW.

Technical Specifications




General Data
Nominal cooling capacity (min-max) kW 10.0 (4.0 – 11.2)
Nominal heating capacity (min-max) kW 11.2 (4.0 – 16.0)
Exterior Dimensions (H x W x D) mm Unit:1850 x 600 x 320
Net Weight kg 52
Air Flow Cooling (Hi/Me/Lo) m3/min 29 / 26 / 23 / 19
Air Flow Heating (Hi/Me/Lo) m3/min 29 / 26 / 23 / 19
Sound Pressure Level Cooling (Hi/Me/Lo) dB(A) 54 / 50 / 48 / 44
Sound Pressure Level Heating (Hi/Me/Lo) dB(A) 54 / 50 / 48 / 44



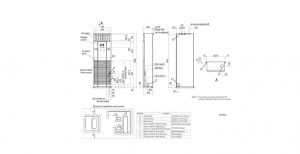

Schematics



Floor Standing – Outdoor Unit

FDC100VSX
PAC outdoor unit with a nominal cooling capacity of 10.0 kW.

Technical Specifications






General Data
Nominal cooling capacity (min-max) kW 10.0 (2.8 – 11.2)
Nominal heating capacity (min-max) kW 11.2 (2.5 – 16.0)
EER (Energy Label) 3.53
COP (Energy Label) 3.68
Exterior Dimensions (H x W x D) mm 1300 x 970 x 370
Net Weight kg 105
Sound Pressure Level (Cooling/Heating) dB(A) 70 / 70
Energy class (Cooling/Heating) A/A
SEER “Average climate”/(Energy label) 5.17
SCOP “Average climate”/(Energy label) 3.80





Electrical Data
Pdesignc kW 10.0
Pdesignh (@-10°C) kW 13.0
Annual electricity consumption (Cooling/Heating) kWh/a 678/4795
Power Source 3 Phase 380-415V, 50Hz, 380V, 60Hz
Inrush current (220/230/240v) A 5
Max. running current A 15
Power consumption (Cooling/Heating) kW 2.83 / 3.04



Installation
Refrigerant (GWP) R410A (2088)
Designated heating season Average
Ref. Piping Size (Liquid/Gas) Ø mm 9.52 (3/8″) / 15.88 (5/8″)
Ref. Max Piping Length m Max. 100
Vertical Height differences / Outdoor is higher/lower m Max. 30 / Max. 15

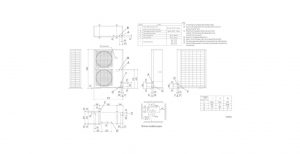

Schematics
