Multi Splits – PAC Wall Mounted / SRK125VSPZMX

Category:

Description

SRK60ZMX-S x2

Compact Ceiling Cassette – Indoor Unit

SRK125VSPZMX

Wall-mounted PAC indoor unit with a nominal cooling capacity of 6.0 kW.

Technical Specifications




General Data
Nominal cooling capacity (min-max) kW 12.5 (5.0 – 14.0)
Nominal heating capacity (min-max) kW 14.0 (4.0 – 16.0)
Exterior Dimensions (H x W x D) mm Unit:309 x 890 x 220
Net Weight kg 15
Air Flow Cooling (Hi/Me/Lo) m3/min 14.5 / 12.5 / 8.5 / 7.0
Air Flow Heating (Hi/Me/Lo) m3/min 17.5 / 15 / 11/ 8.5
Sound Pressure Level Cooling (Hi/Me/Lo) dB(A) 51 / 41 / 29 / 25
Sound Pressure Level Heating (Hi/Me/Lo) dB(A) 48 / 41 / 34 / 27



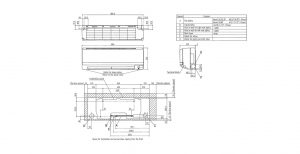

Schematics



Compact Ceiling cassette – Outdoor Unit

FDC125VS

PAC outdoor unit with a nominal cooling capacity of 12.5 kW.

Technical Specifications






General Data
Nominal cooling capacity (min-max) kW 12.5 (5.0 – 14.0)
Nominal heating capacity (min-max) kW 14.0 (4.0 – 16.0)
EER (Energy Label) 2.94
COP (Energy Label) 3.26
Exterior Dimensions (H x W x D) mm 845 x 970 x 370
Net Weight kg 83
Sound Pressure Level (Cooling/Heating) dB(A) 50/51





Electrical Data
Power Source 3 Phase 380-415V, 50Hz, 3 Phase 380V 60Hz
Inrush current (220/230/240v) A 5
Max. running current A 15
Power consumption (Cooling/Heating) kW 4.25 / 4.29



Installation
Ref. Piping Size (Liquid/Gas) Ø mm 9.52 (3/8″) / 15.88 (5/8″)
Ref. Max Piping Length m Max. 50
Vertical Height differences / Outdoor is higher/lower m Max. 30 / Max. 15

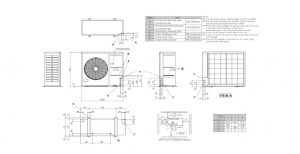

Schematics
