Multi Indoor Units – Wall Mounted / SRK35ZS-S

Category:

Description

Wall Mounted – Indoor Unit

SRK35ZS-S

Wall mounted RAC indoor unit with a nominal cooling capacity of 3.5 kW.

Technical Specifications


Data Sheet (Printer Friendly)



General Data
Nominal cooling capacity kW 3.5
Nominal heating capacity kW 4.5
Exterior Dimensions (H x W x D) mm Unit: 290 x 870 x 230
Net Weight kg 9.5
Air Flow Cooling (Hi/Me/Lo) m3/min 11.3 / 8.7 / 5.6 /: 5.0
Air Flow Heating (Hi/Me/Lo) m3/min 12.3 / 11.0 / 7.0 / 5.6
Sound Pressure Level Cooling (Hi/Me/Lo) dB(A) 40 / 30 / 26 / 19
Sound Pressure Level Heating (Hi/Me/Lo) dB(A) 41 / 36 / 25 / 19

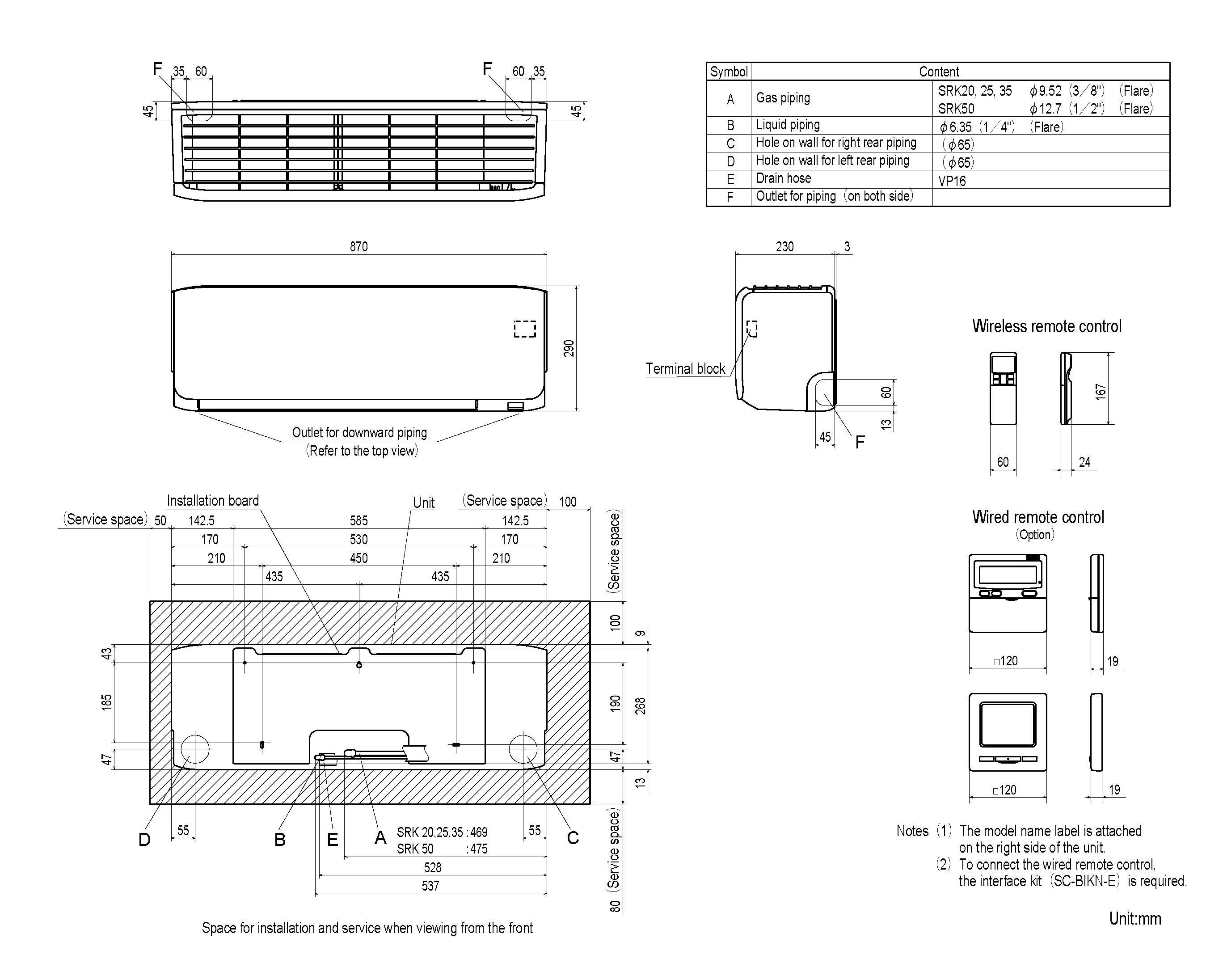

Schematics
