Multi Indoor Units – Wall Mounted / SRK20ZS-S

Category:

Description

Wall Mounted – Indoor Unit

SRK20ZS-S

Wall mounted RAC indoor unit with a nominal cooling capacity of 2.0 kW.

Technical Specifications


Data Sheet (Printer Friendly)



General Data
Nominal cooling capacity kW 2.0
Nominal heating capacity kW 3.0
Exterior Dimensions (H x W x D) mm Unit: 290 x 870 x 230
Net Weight kg 9.5
Air Flow Cooling (Hi/Me/Lo) m3/min 9.3 / 7.0 / 5.9 / 5.0
Air Flow Heating (Hi/Me/Lo) m3/min 10.0 / 8.5 / 6.5 / 5.9
Sound Pressure Level Cooling (Hi/Me/Lo) dB(A) 34 / 25 /22 / 19
Sound Pressure Level Heating (Hi/Me/Lo) dB(A) 36 / 29 / 23 / 19

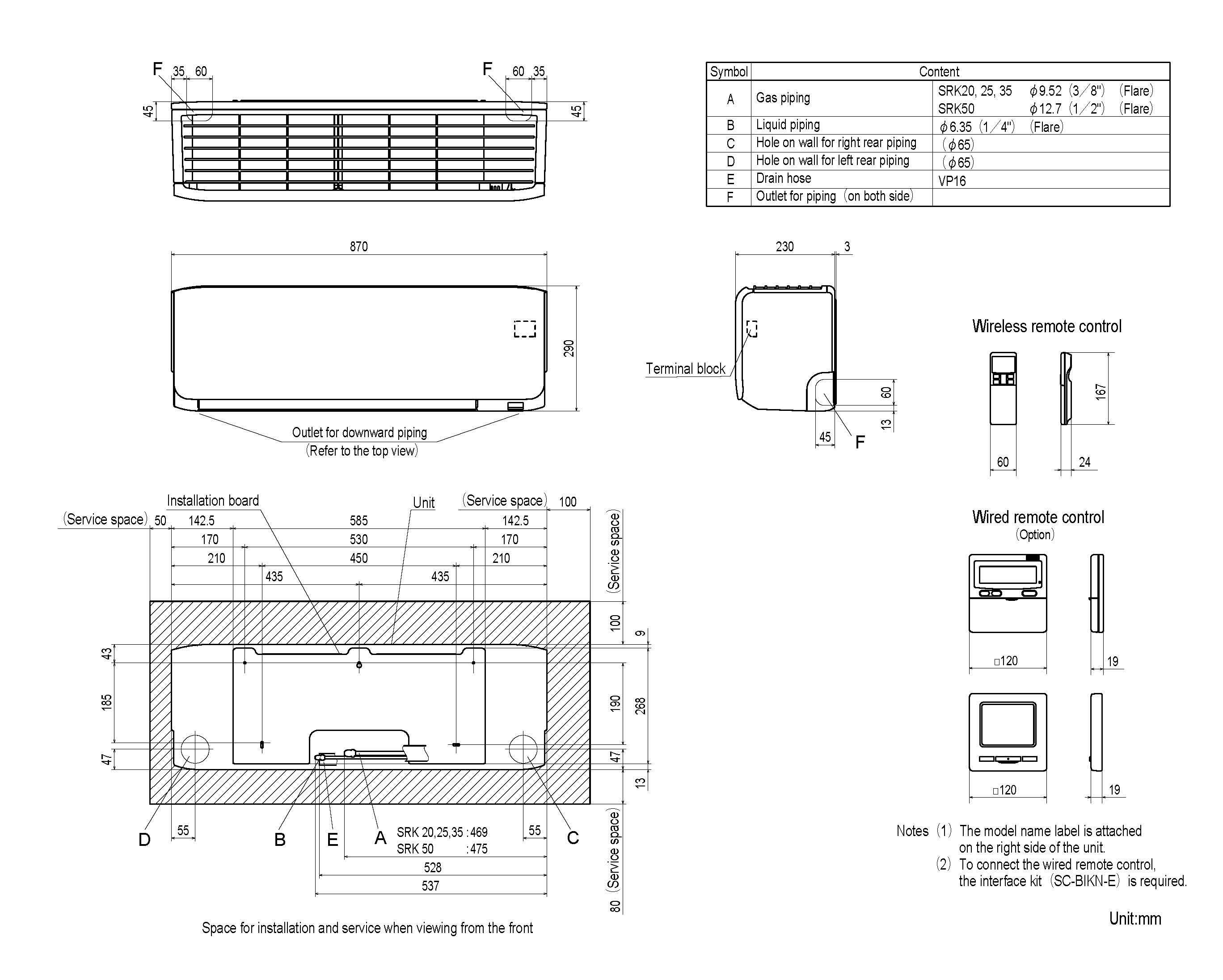

Schematics
