Description
Heat Recovery – Outdoor Unit
FDC224KXRE6
VRF outdoor unit with a nominal cooling capacity of 61.5kW.
Technical Specifications
Data Sheet (Printer Friendly)
| Nominal cooling capacity | kW | 61.5 |
| Nominal heating capacity | kW | 69 |
| Exterior Dimensions (H x W x D) | mm | 2048 x 1350 x 720 |
| Net Weight | kg | 375 |
| Sound Pressure Level (Cooling/Heating) | dB(A) | 64/64.5 |
| Number of connectable indoor units | - | 44 |
| Capacity connection | - | 50-160 |
| Power Source | - | 3 Phase 380-415V, 50Hz |
| Power consumption Cooling | kW | 21.47 |
| Power consumption Heating | kW | 19.11 |
| Operating Current Cooling | A | 34.7- 31.8 |
| Operating Current Heating | A | 31.6- 28.9 |
| Piping Size - Liquid line | Ø mm | 12.7 (1/2") |
| Piping Size - Suction Gas line | Ø mm | 28.58 (1 1/8 ") |
| Piping Size - Discharge Gas line | Ø mm | 25.4 (1") [22.22 (7/8")] |

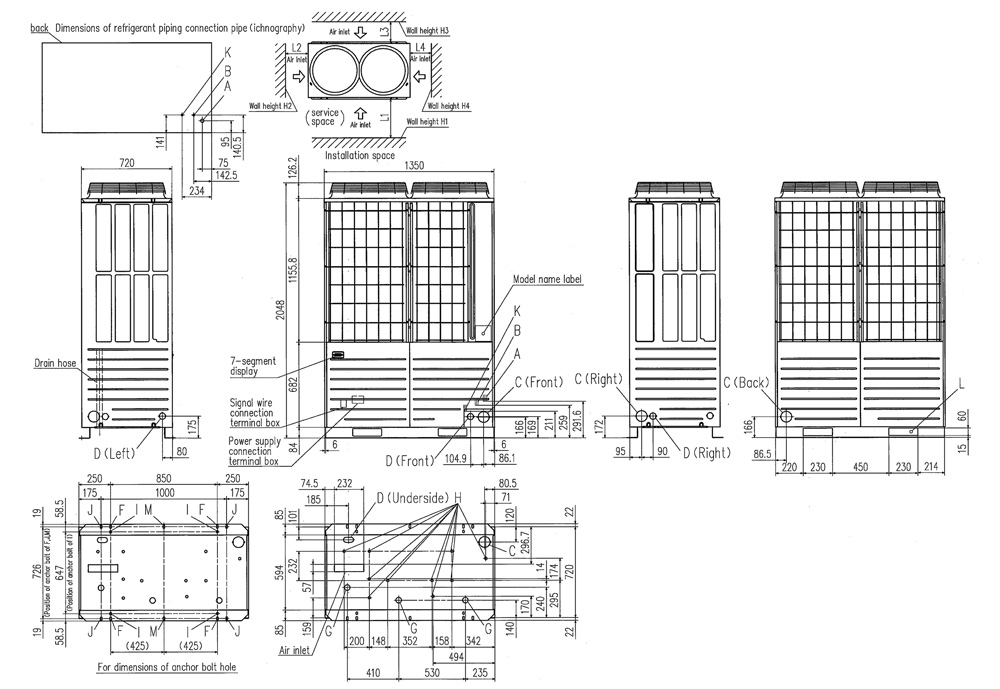

Schematics
