FDT100VF2 x2
Ceiling Cassette — Indoor Unit
FDT200VSAPVF2
Ceiling cassette PAC indoor unit with a nominal cooling capacity of 10.0 kW.
Technical Specifications
| Nominal cooling capacity (min-max) | kW | 19.0 ( 5.2- 22.4 ) |
| Nominal heating capacity (min-max) | kW | 22.4 (3.3- 25.0) |
| Exterior Dimensions (H x W x D) | mm | Unit: 298 x 840 x 840; Panel: 35 x 950 x 950 |
| Net Weight | kg | 32.5 (Unit: 27; Panel: 5.5) |
| Air Flow Cooling (Hi/Me/Lo) | m3/min | 37/ 27 / 24 / 20 |
| Air Flow Heating (Hi/Me/Lo) | m3/min | 37/ 27 / 24 / 20 |
| Sound Pressure Level Cooling (Hi/Me/Lo) | dB(A) | 51/ 40 / 37 / 35 |
| Sound Pressure Level Heating (Hi/Me/Lo) | dB(A) | 51/ 40 / 37 / 35 |
Schematics
Ceiling cassette — Outdoor Unit
FDC200VSA
PAC outdoor unit with a nominal cooling capacity of 20.0 kW.
Technical Specifications
| Nominal cooling capacity (min-max) | kW | 19.0 ( 5.2- 22.4 ) |
| Nominal heating capacity (min-max) | kW | 22.4 (3.3- 25.0) |
| EER (Energy Label) | — | 3.04 |
| COP (Energy Label) | — | 3.72 |
| Exterior Dimensions (H x W x D) | mm | 1300 x 970 x 370 |
| Net Weight | kg | 115 |
| Sound Pressure Level (Cooling/Heating) | dB(A) | 58/59 |
| Power Source | — | 3 Phase 380-415V 50Hz, 3 Phase 380V 60Hz |
| Inrush current (220/230/240v) | A | 5 |
| Max. running current | A | 20 |
| Power consumption (Cooling/Heating) | kW | 6.25 / 6.02 |
| Ref. Piping Size (Liquid/Gas) | Ø mm | 9.52 (3/8″) / 22.22 (7/8″) |
| Ref. Max Piping Length | m | Max. 70 |
| Vertical Height differences / Outdoor is higher/lower | m | Max. 30 / Max. 15 |

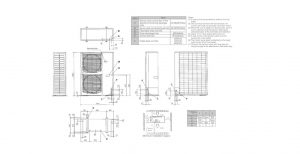

Schematics
