Heat Recovery — Outdoor Unit

FDC900KXRE6

Heat Recovery — Outdoor Unit

VRF outdoor unit with a nominal cooling capacity of 90.0 kW.

Technical Specifications

---

Data Sheet (Printer Friendly)

Download



General Data

Indoor Unit Combination	kW	450KXRE6 + 450KXRE6
Nominal cooling capacity	kW	90
Nominal heating capacity	kW	100
Exterior Dimensions (H x W x D)	mm	(1690 x 1350 x 720) x 2
Net Weight	kg	337x2
Number of connectable indoor units	-	65
Capacity connection	-	50-160



Electrical Data

Power Source	-	3 Phase 380-415V, 50Hz
Power consumption Cooling	kW	26.98
Power consumption Heating	kW	26.64
Operating Current Cooling	A	43.2-39.6
Operating Current Heating	A	44.0-40.2

Installation

Piping Size - Liquid line	Ø mm	15.88 (5/8")
Piping Size - Suction Gas line	Ø mm	31.75 (1 1/4") [34.92 (1 3/8")]
Piping Size - Discharge Gas line	Ø mm	28.58 (1 1/8")

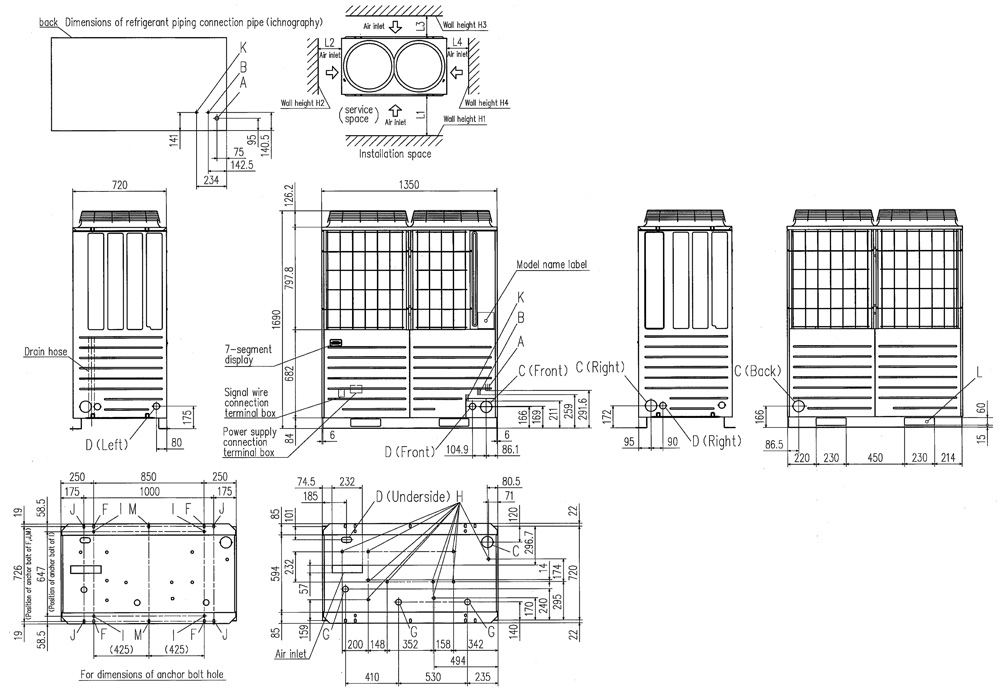

Schematics

---

---
