SAF800E6
Fresh Air Ventilation & Exchange Unit — Indoor Unit
SAF800E6
VRF fresh air ventilation and heat exchange unit with an air flow up to 800m3/h.
Technical Specifications
| Power Source | — | 1 Phase 220-240V 50Hz |
| Exterior Dimensions (H x W x D) | mm | Units:388 x 1322 x 884 |
| Net Weight | kg | 71.0 |
| Exterior appearance | — | Galvanized steel sheet |
| Power Input | — | 360 — 378 |
| Running Current | A | 1.64 — 1.58 |
| Capacity – Enthalpy exchange efficiency Cooling / Heating (Uhi) | — | 65/71 |
| Capacity – Temperature exchange efficiency (Uhi) | — | 75 |
| Capacity – Enthalpy exchange efficiency Cooling / Heating(Hi) | — | 65/71 |
| Capacity – Temperature exchange efficiency (Hi) | — | 75 |
| Capacity – Enthalpy exchange efficiency Cooling / Heating (Lo) | — | 68/74 |
| Capacity – Temperature exchange efficiency (Lo) | — | 76 |
| Motor & Quantity | — | 180×2 |
| Air handling equipment Fan type & Quantity | — | Sirocco fan x 2 |
| Air Flow (Uhi/Hi/Lo) | m3/hr | 800 / 800 / 630 |
| External static pressure (Uhi/Hi/Lo) | — | 140 / 110 / 55 |

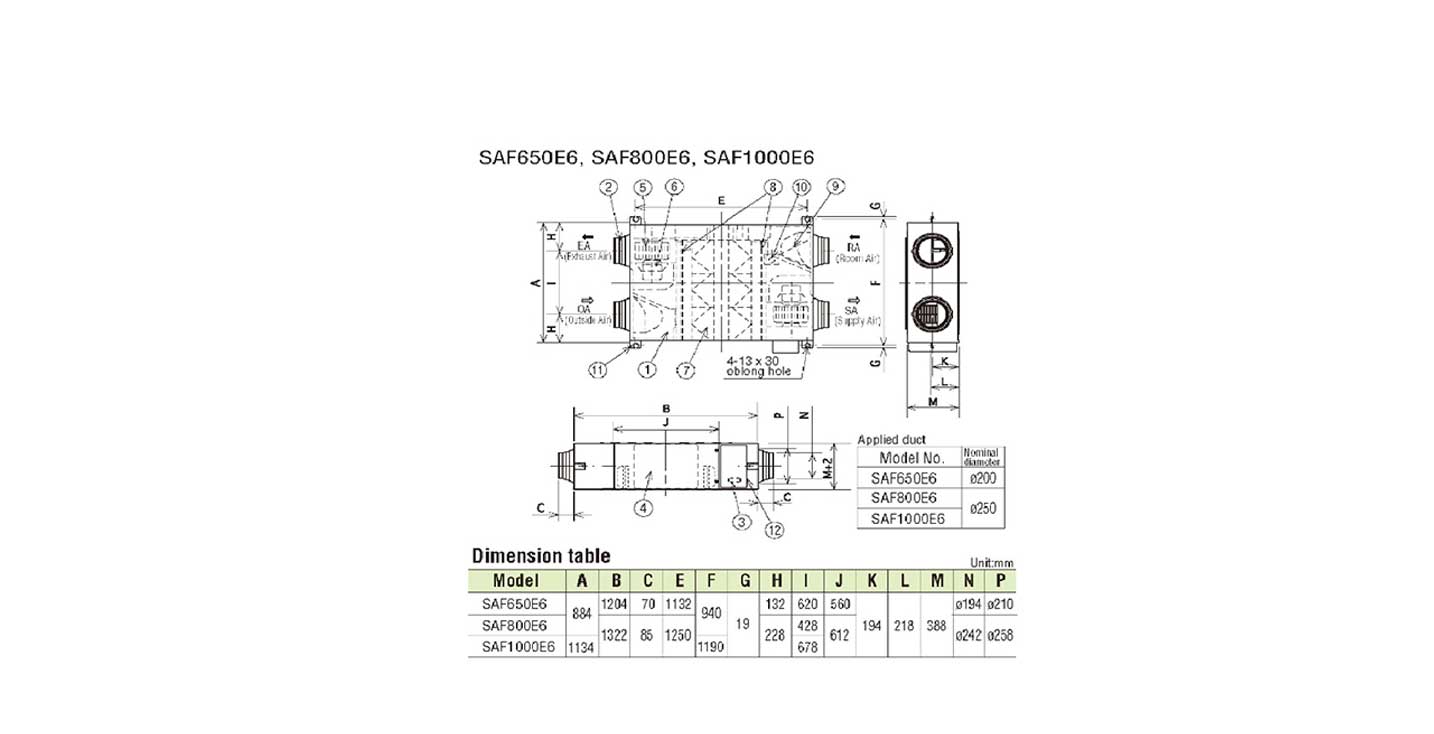

Schematics
