SAF500E6
Fresh Air Ventilation & Exchange Unit — Indoor Unit
SAF500E6
VRF fresh air ventilation and heat exchange unit with an air flow up to 500m3/h.
Technical Specifications
| Power Source | — | 1 Phase 220-240V 50Hz |
| Exterior Dimensions (H x W x D) | mm | Units:317 x 1090 x 904 |
| Net Weight | kg | 57.0 |
| Exterior appearance | — | Galvanized steel sheet |
| Power Input | — | 204 — 225 |
| Running Current | A | 0.93 — 0.94 |
| Capacity – Enthalpy exchange efficiency Cooling / Heating (Uhi) | — | 62/67 |
| Capacity – Temperature exchange efficiency (Uhi) | — | 75 |
| Capacity – Enthalpy exchange efficiency Cooling / Heating(Hi) | — | 62/67 |
| Capacity – Temperature exchange efficiency (Hi) | — | 75 |
| Capacity – Enthalpy exchange efficiency Cooling / Heating (Lo) | — | 64/69 |
| Capacity – Temperature exchange efficiency (Lo) | — | 76 |
| Motor & Quantity | — | 70×2 |
| Air handling equipment Fan type & Quantity | — | Sirocco fan x 2 |
| Air Flow (Uhi/Hi/Lo) | m3/hr | 500 / 500 / 440 |
| External static pressure (Uhi/Hi/Lo) | — | 120 / 60 / 35 |

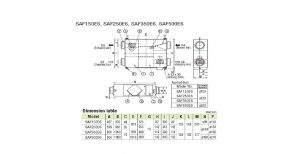

Schematics
