FDUT22KXE6F-E
Duct Connected – Indoor Unit
FDUT22KXE6F-E
Duct connected VRF indoor unit with a nominal cooling capacity of 2.2 kW.
Technical Specifications
| Nominal cooling capacity | kW | 2.2 |
| Nominal heating capacity | kW | 2.5 |
| Power consumption Cooling | kW | 0.07 – 0.07 |
| Power consumption Heating | kW | 0.07 – 0.07 |
| Power Source | – | 1 Phase 220-240V 50Hz |
| Exterior Dimensions (H x W x D) | mm | Units:200 x 750 x 500 |
| Net Weight | kg | 21.0 |
| Indoor Unit Air Flow | m3/min | 7.5 / 6 / 5 |
| Sound Pressure Level | dB(A) | 28/ 26/ 22 |
| Piping Size – Liquid line | Ø mm | 6.35 (1/4″) |
| Piping Size – Gas Line | Ø mm | 9.52 (3/8″) |

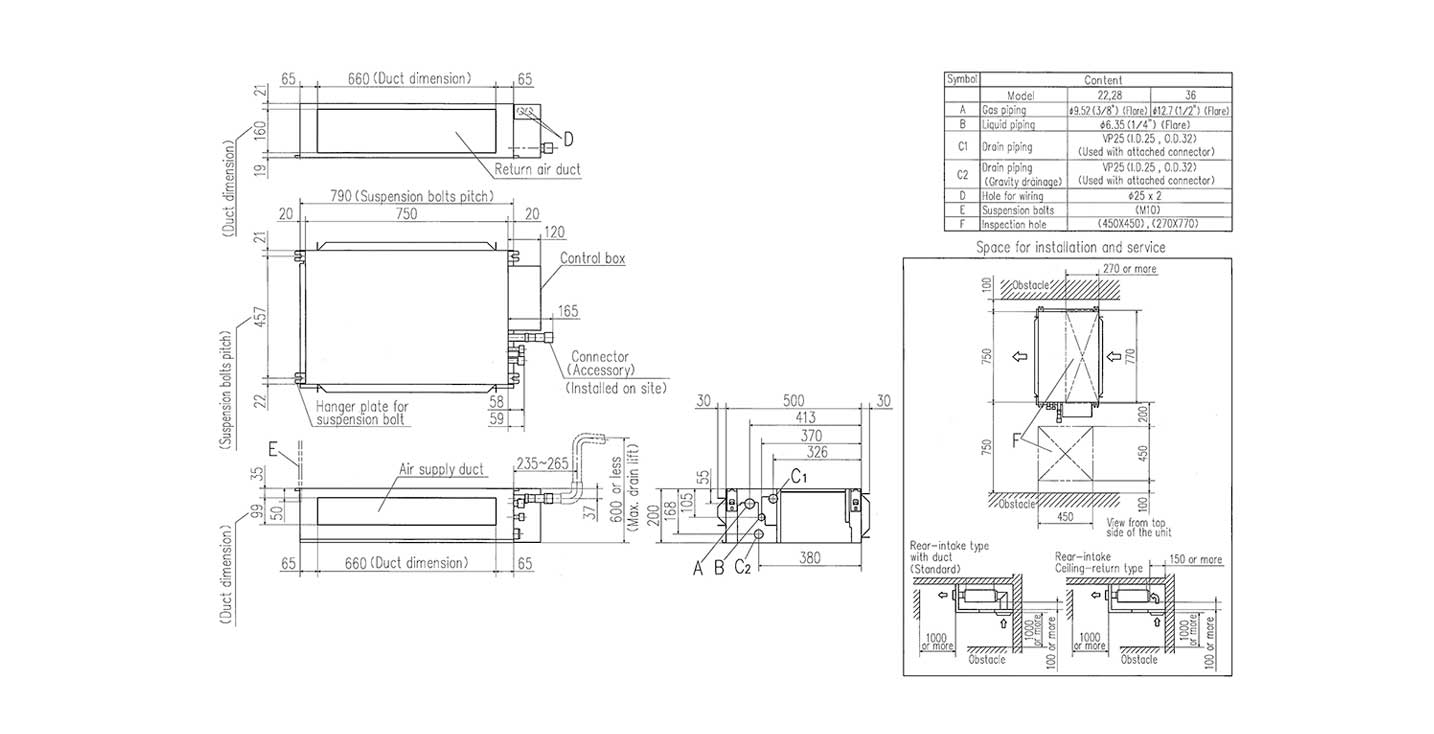

Schematics
