Açıklama
FDUM71VF1 x2
Low Static Pressure Duct Connected – Indoor Unit
FDUM140VNPVF1
Low static pressure duct connected PAC indoor unit with a nominal cooling capacity of 7.1 kW.
Technical Specifications
| Nominal cooling capacity (min-max) | kW | 14.0 ( 5.0 – 14.5 ) |
| Nominal heating capacity (min-max) | kW | 16.0 (4.0 – 16.5) |
| Exterior Dimensions (H x W x D) | mm | Unit:280 x 950 x 635 |
| Net Weight | kg | 34 |
| Air Flow Cooling (Hi/Me/Lo) | m3/min | 24/ 19 / 15 / 10 |
| Air Flow Heating (Hi/Me/Lo) | m3/min | 24/ 19 / 15 / 10 |
| Sound Pressure Level Cooling (Hi/Me/Lo) | dB(A) | 38/ 33 / 29 / 25 |
| Sound Pressure Level Heating (Hi/Me/Lo) | dB(A) | 38/ 33 / 29 / 25 |
Schematics
Low Static Pressure Duct Connected – Outdoor Unit
FDC140VN
PAC outdoor unit with a nominal cooling capacity of 14.0 kW.
Technical Specifications
| Nominal cooling capacity (min-max) | kW | 14.0 (5.0 – 14.5) |
| Nominal heating capacity (min-max) | kW | 16.0 (4.0 – 16.5.0) |
| EER (Energy Label) | – | 2.93 |
| COP (Energy Label) | – | 3.48 |
| Exterior Dimensions (H x W x D) | mm | 845 x 970 x 370 |
| Net Weight | kg | 81 |
| Sound Pressure Level (Cooling/Heating) | dB(A) | 51/51 |
| Power Source | – | 1 Phase 220-240V 50Hz, 1 Phase 220V 60Hz |
| Inrush current (220/230/240v) | A | 5 |
| Max. running current | A | 24 |
| Power consumption (Cooling/Heating) | kW | 4.78 / 4.60 |
| Ref. Piping Size (Liquid/Gas) | Ø mm | 9.52 (3/8″) / 15.88 (5/8″) |
| Ref. Max Piping Length | m | Max. 50 |
| Vertical Height differences / Outdoor is higher/lower | m | Max. 30 / Max. 15 |

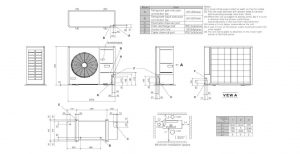

Schematics
