Ceiling cassette – Indoor Unit
FDT71VNXPVF
Ceiling cassette PAC indoor unit with a nominal cooling capacity of 4.0 kW.
Technical Specifications
| Nominal cooling capacity (min-max) | kW | 7.1 (3.2 – 8.0) |
| Nominal heating capacity (min-max) | kW | 8.0 (3.6 – 9.0) |
| Exterior Dimensions (H x W x D) | mm | Unit: 246 x 840 x 840; Panel: 35 x 950 x 950 |
| Net Weight | kg | 27.5 (Unit: 22; Panel: 5.5) |
| Air Flow Cooling (Hi/Me/Lo) | m3/min | 20/ 18 / 16 / 14 |
| Air Flow Heating (Hi/Me/Lo) | m3/min | 20/ 18 / 16 / 14 |
| Sound Pressure Level Cooling (Hi/Me/Lo) | dB(A) | 39/ 33 / 31 / 30 |
| Sound Pressure Level Heating (Hi/Me/Lo) | dB(A) | 39/ 33 / 31 / 30 |

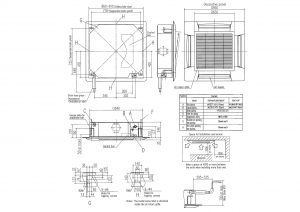

Schematics
Ceiling cassette – Outdoor Unit
FDC71VNX
PAC outdoor unit with a nominal cooling capacity of 7.1 kW.
Technical Specifications
Sound Pressure Level (Cooling/Heating)dB(A)51 / 48
| Nominal cooling capacity (min-max) | kW | 7.1 (3.2 – 8.0) |
| Nominal heating capacity (min-max) | kW | 8.0 (3.6 – 9.0) |
| EER (Energy Label) | – | 3.84 |
| COP (Energy Label) | – | 4.02 |
| Exterior Dimensions (H x W x D) | mm | Unit: 750 x 880 (+88) x 340 |
| Net Weight | kg | 60.0 |
| Energy class (Cooling/Heating) | – | A+/A+ |
| SEER “Average climate”/(Energy label) | – | 5.68 |
| SCOP “Average climate”/(Energy label) | – | 4.10 |
Power consumption (Cooling/Heating)kW1.85 / 1.99
| Pdesignc | kW | 7.1 |
| Pdesignh (@-10°C) | kW | 7.3 |
| Annual electricity consumption (Cooling/Heating) | kWh/a | 438 / 2494 |
| Power Source | – | 1 Phase 220-240V 50Hz, 1 Phase 220V 60Hz |
| Inrush current (220/230/240v) | A | 5 |
| Max. running current | A | 17 |
| Refrigerant (GWP) | – | R410A (2088) |
| Designated heating season | – | Average |
| Ref. Piping Size (Liquid/Gas) | Ø mm | 9.52 (3/8″) / 15.88 (5/8″) |
| Ref. Max Piping Length | m | Max. 50 |
| Vertical Height differences / Outdoor is higher/lower | m | Max. 30 / Max. 15 |
