Ceiling Cassette – Indoor Unit
FDT125VNXPVF
Ceiling cassette PAC indoor unit with a nominal cooling capacity of 6.0 kW.
Technical Specifications
| Nominal cooling capacity (min-max) | kW | 12.5 (5.0 – 14.0) |
| Nominal heating capacity (min-max) | kW | 14.0 (4.0 – 17.0) |
| Exterior Dimensions (H x W x D) | mm | Unit: 246 x 840 x 840; Panel: 35 x 950 x 950 |
| Net Weight | kg | 29.5 (Unit: 24; Panel: 5.5) |
| Air Flow Cooling (Hi/Me/Lo) | m3/min | 28/ 18 / 16 / 14 |
| Air Flow Heating (Hi/Me/Lo) | m3/min | 28/ 18 / 16 / 14 |
| Sound Pressure Level Cooling (Hi/Me/Lo) | dB(A) | 46/ 33 / 31 / 30 |
| Sound Pressure Level Heating (Hi/Me/Lo) | dB(A) | 46/ 33 / 31 / 30 |
Schematics
Ceiling cassette – Outdoor Unit
FDC125VNX
PAC outdoor unit with a nominal cooling capacity of 10.0 kW.
Technical Specifications
Sound Pressure Level (Cooling/Heating)dB(A)48 / 50
| Nominal cooling capacity (min-max) | kW | 12.5 (5.0 – 14.0) |
| Nominal heating capacity (min-max) | kW | 14.0 (4.0 – 17.0) |
| EER (Energy Label) | – | 4.08 |
| COP (Energy Label) | – | 4.35 |
| Exterior Dimensions (H x W x D) | mm | Unit: 1300 x 970 x 370 |
| Net Weight | kg | 105.0 |
| Sound Pressure Level (Cooling/Heating) | dB(A) | 48/50 |
| Power Source | – | 1 Phase 220-240V 50Hz, 1 Phase 220V 60Hz |
| Inrush current (220/230/240v) | A | 5 |
| Max. running current | A | 26 |
| Power consumption (Cooling/Heating) | kW | 3.06 / 3.22 |
| Ref. Piping Size (Liquid/Gas) | Ø mm | 9.52 (3/8″) / 15.88 (5/8″) |
| Ref. Max Piping Length | m | Max. 100 |
| Vertical Height differences / Outdoor is higher/lower | m | Max. 30 / Max. 15 |

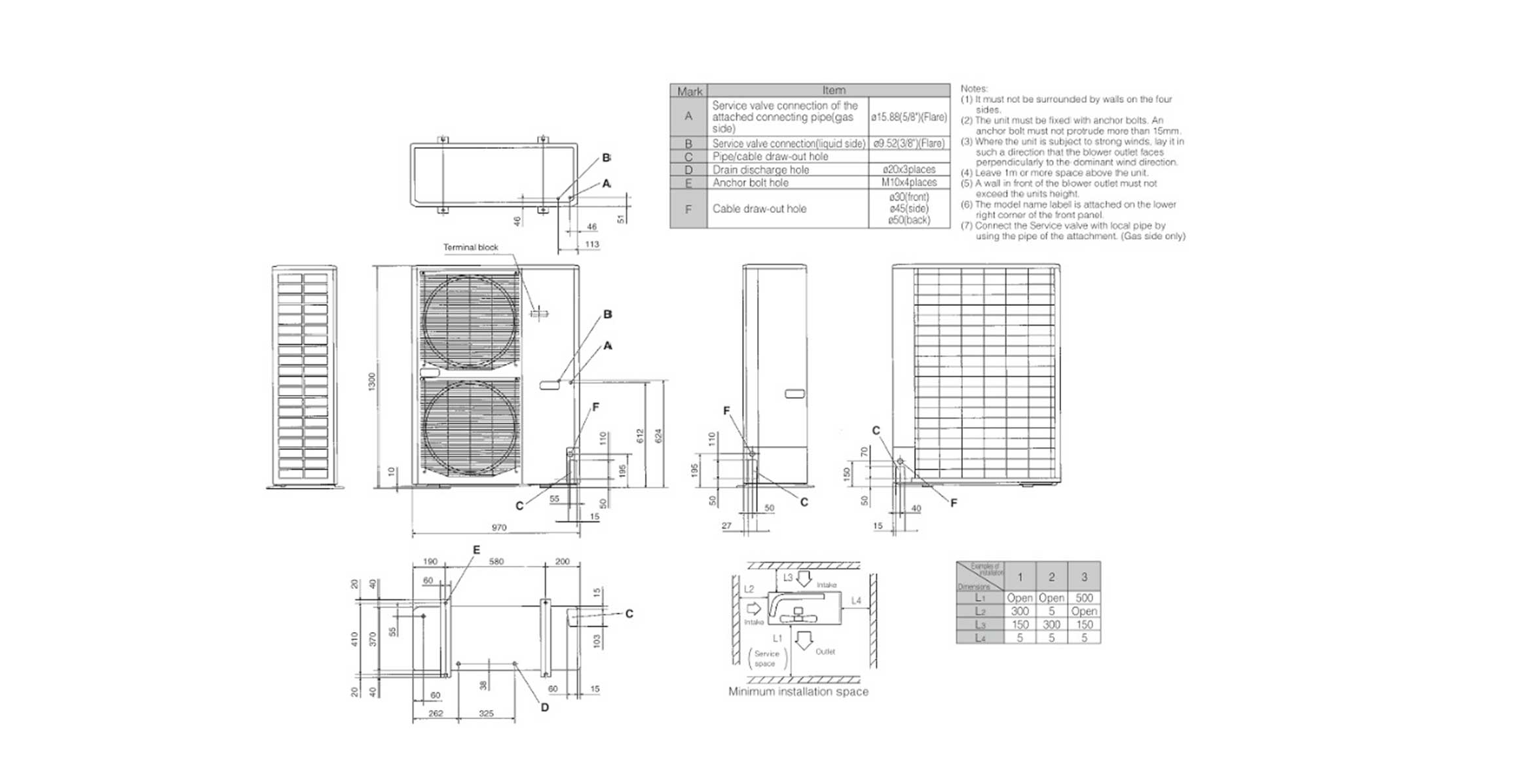

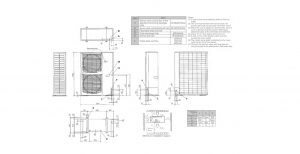

Schematics
