FDUT56KXE6F-E
Duct Connected – Indoor Unit
FDUT56KXE6F-E
Duct connected VRF indoor unit with a nominal cooling capacity of 5.6 kW.
Technical Specifications
| Nominal cooling capacity | kW | 5.6 |
| Nominal heating capacity | kW | 6.0 |
| Power consumption Cooling | kW | 0.08 – 0.08 |
| Power consumption Heating | kW | 0.08 – 0.08 |
| Power Source | – | 1 Phase 220-240V 50Hz |
| Exterior Dimensions (H x W x D) | mm | Units:200 x 950 x 500 |
| Net Weight | kg | 25.0 |
| Indoor Unit Air Flow | m3/min | 12.5 / 9 / 7.2 |
| Sound Pressure Level | dB(A) | 35/ 33/ 30 |
| Piping Size – Liquid line | Ø mm | 6.35 (1/4″) |
| Piping Size – Gas Line | Ø mm | 12.7 (1/2″) |

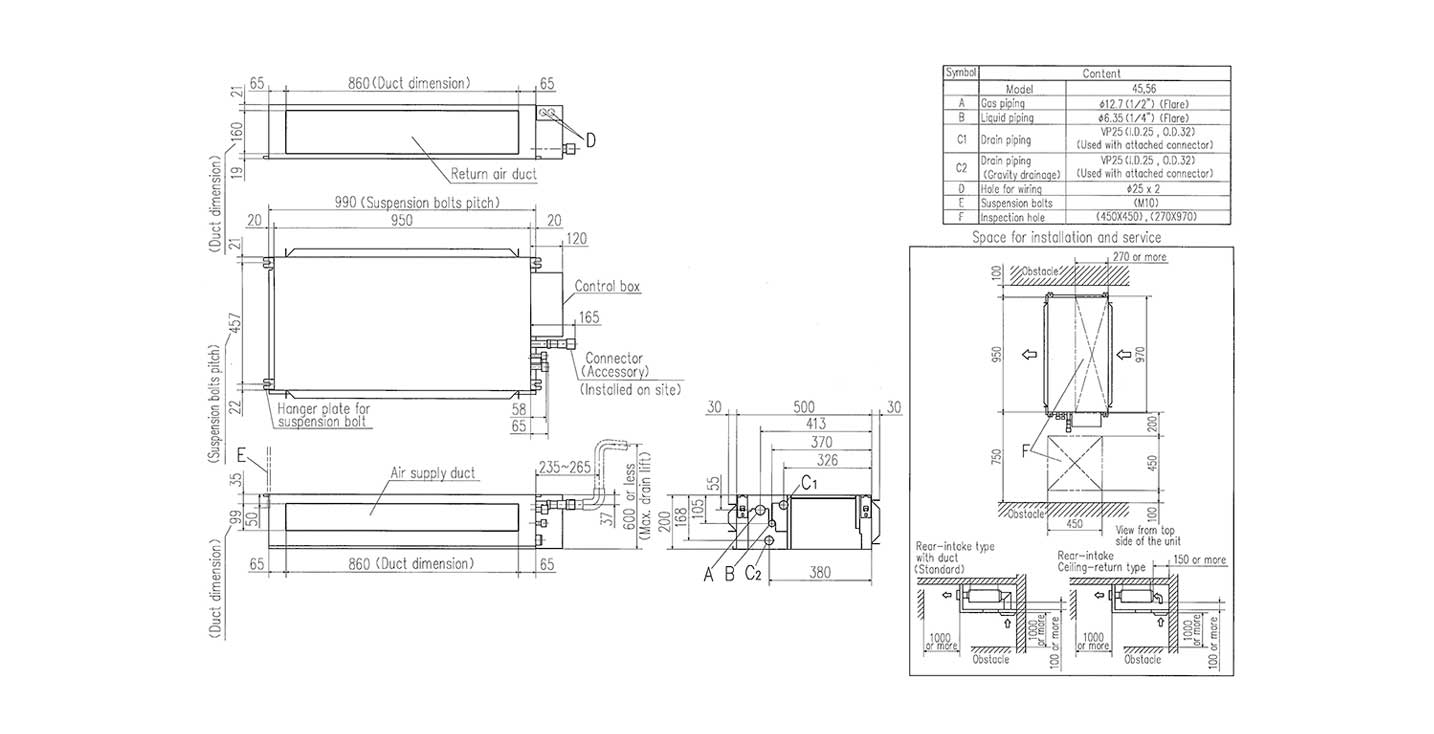

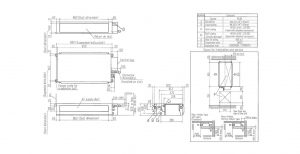

Schematics
