FDUH36KXE6F
Duct Connected – Indoor Unit
FDUH36KXE6F
Duct connected VRF indoor unit with a nominal cooling capacity of 3.6 kW.
Technical Specifications
| Nominal cooling capacity | kW | 3.6 |
| Nominal heating capacity | kW | 4.0 |
| Power consumption Cooling | kW | 0.05 – 0.07 |
| Power consumption Heating | kW | 0.05 – 0.07 |
| Power Source | – | 1 Phase 220-240V 50Hz |
| Exterior Dimensions (H x W x D) | mm | Units:257 x 570 x 530 |
| Net Weight | kg | 22.0 |
| Indoor Unit Air Flow | m3/min | 8.5/ 7 / 6.5 / 6 |
| Sound Pressure Level | dB(A) | 39/ 33 / 30 / 27 |
| Piping Size – Liquid line | Ø mm | 6.35 (1/4″) |
| Piping Size – Gas Line | Ø mm | 12.7 (1/2″) |

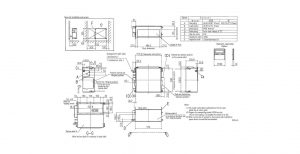

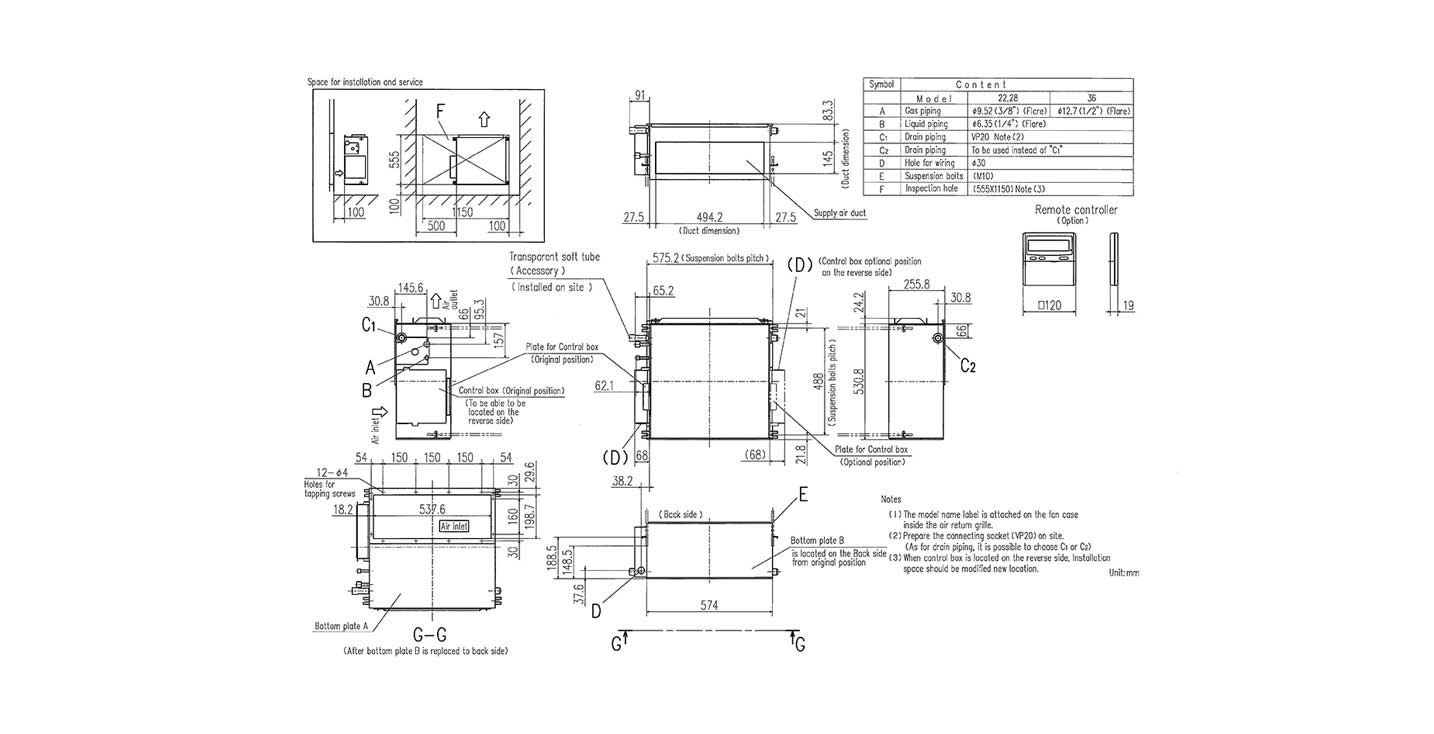

Schematics
