FDU160KXE6F
Duct Connected – Indoor Unit
FDU160KXE6F
Duct connected VRF indoor unit with a nominal cooling capacity of 16.0 kW.
Technical Specifications
| Nominal cooling capacity | kW | 16.0 |
| Nominal heating capacity | kW | 18.0 |
| Power consumption Cooling | kW | 0.42 – 0.43/0.42 |
| Power consumption Heating | kW | 0.42 – 0.43/0.42 |
| Power Source | – | 1 Phase 220-240V 50Hz |
| Exterior Dimensions (H x W x D) | mm | Units:280 x 1370 x 740 |
| Net Weight | kg | 54.0 |
| Indoor Unit Air Flow | m3/min | 48/ 35 / 28 / 22 |
| Sound Pressure Level | dB(A) | 47/ 40 / 35 / 30 |
| Piping Size – Liquid line | Ø mm | 9.52 (3/8″) |
| Piping Size – Gas Line | Ø mm | 15.88 (5/8″) |

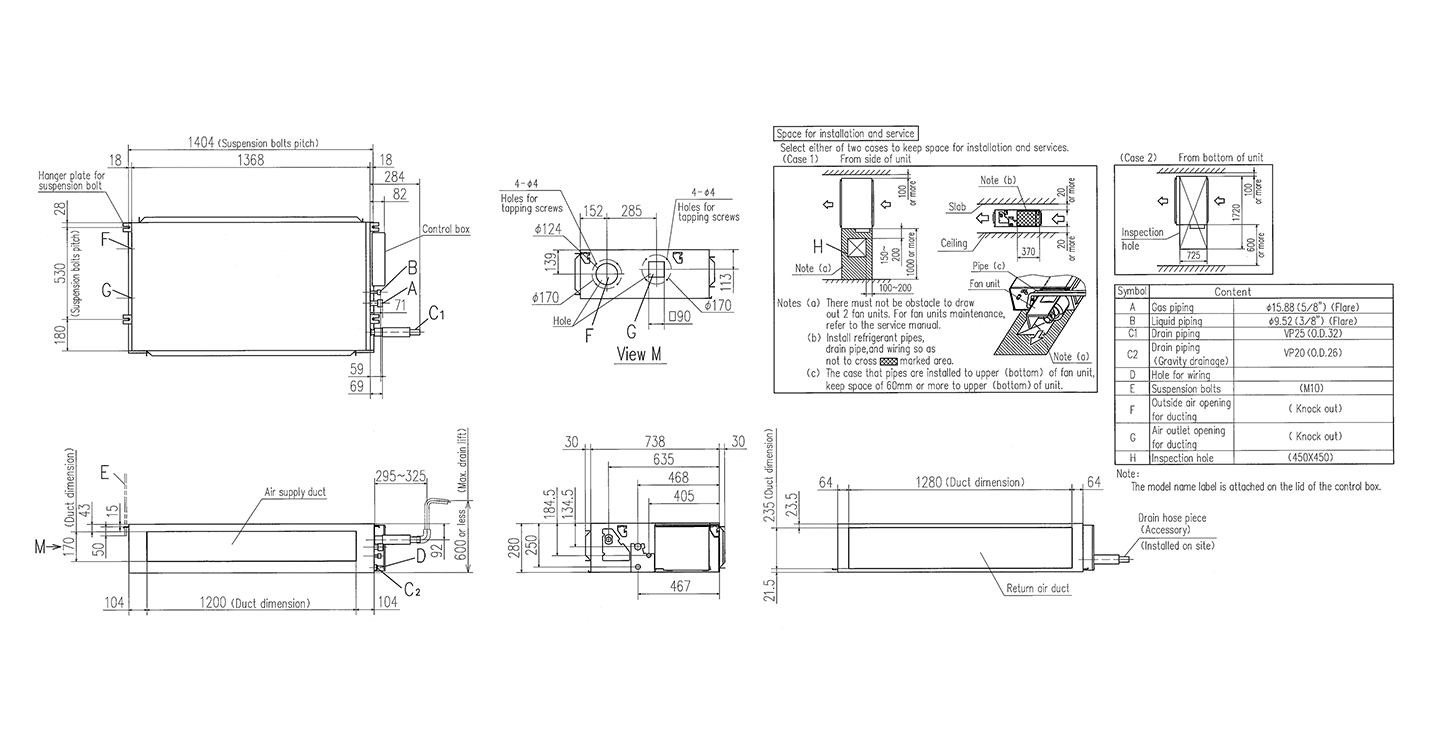

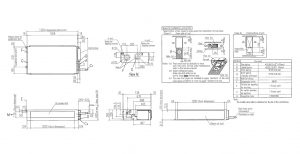

Schematics
