FDU200VG
High Static Pressure Duct Connected – Indoor Unit
FDU200VSAVG
High static pressure duct connected PAC indoor unit with a nominal cooling capacity of 14.0 kW.
Technical Specifications
| Nominal cooling capacity (min-max) | kW | 19.0 ( 5.2- 22.4 ) |
| Nominal heating capacity (min-max) | kW | 22.4 ( 3.3 – 25.0 ) |
| Exterior Dimensions (H x W x D) | mm | Unit:379 x 1,600 x 893 |
| Net Weight | kg | 89 |
| Air Flow Cooling (Hi/Me/Lo) | m3/min | 80 / 72 / 64 / 56 |
| Air Flow Heating (Hi/Me/Lo) | m3/min | 80 / 72 / 64 / 56 |
| Sound Pressure Level Cooling (Hi/Me/Lo) | dB(A) | 52 /50 / 47 / 45 |
| Sound Pressure Level Heating (Hi/Me/Lo) | dB(A) | 52 /50 / 47 / 45 |

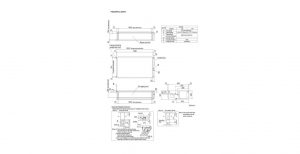

Schematics
High Static Pressure Duct Connected – Outdoor Unit
FDC200VSA
PAC outdoor unit with a nominal cooling capacity of 20.0 kW.
Technical Specifications
| Nominal cooling capacity (min-max) | kW | 19.0 ( 5.2- 22.4 ) |
| Nominal heating capacity (min-max) | kW | 22.4 ( 3.3 – 25.0 ) |
| EER (Energy Label) | – | 3.09 |
| COP (Energy Label) | – | 3.71 |
| Exterior Dimensions (H x W x D) | mm | 1300 x 970 x 370 |
| Net Weight | kg | 115 |
| Sound Pressure Level (Cooling/Heating) | dB(A) | 58/59 |
| Power Source | – | 3 Phase 380-415V 50Hz, 3 Phase 380V 60Hz |
| Inrush current (220/230/240v) | A | 5 |
| Max. running current | A | 25 |
| Power consumption (Cooling/Heating) | kW | 6.15 / 6.03 |
| Ref. Piping Size (Liquid/Gas) | Ø mm | 9.52 (3/8″) / 22.22 (7/8″) |
| Ref. Max Piping Length | m | Max. 70 |
| Vertical Height differences / Outdoor is higher/lower | m | Max. 30 / Max. 15 |

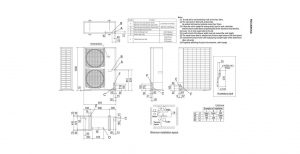

Schematics
