Açıklama
FDE60VG x2
Ceiling Suspended – Indoor Unit
FDE125VSXPVG
Low static pressure duct connected PAC indoor unit with a nominal cooling capacity of 6.0 kW.
Technical Specifications
| Nominal cooling capacity (min-max) | kW | 12.5 (5.0 – 14.0) |
| Nominal heating capacity (min-max) | kW | 14.0 (4.0 – 18.0) |
| Exterior Dimensions (H x W x D) | mm | Unit:210 x 1320 x 690 |
| Net Weight | kg | 33 |
| Air Flow Cooling (Hi/Me/Lo) | m3/min | 20/ 16 / 13/ 10 |
| Air Flow Heating (Hi/Me/Lo) | m3/min | 20/ 16 / 13/ 10 |
| Sound Pressure Level Cooling (Hi/Me/Lo) | dB(A) | 47/ 41 / 37 / 32 |
| Sound Pressure Level Heating (Hi/Me/Lo) | dB(A) | 47/ 41 / 37 / 32 |

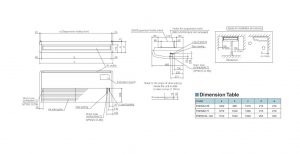

Schematics
Ceiling Suspended – Outdoor Unit
FDC125VSX
PAC outdoor unit with a nominal cooling capacity of 12.5 kW.
Technical Specifications
| Nominal cooling capacity (min-max) | kW | 12.5 (5.0 – 14.0) |
| Nominal heating capacity (min-max) | kW | 14.0 (4.0 – 18.0) |
| EER (Energy Label) | – | 3.15 |
| COP (Energy Label) | – | 3.78 |
| Exterior Dimensions (H x W x D) | mm | 1300 x 970 x 370 |
| Net Weight | kg | 105 |
| Sound Pressure Level (Cooling/Heating) | dB(A) | 48 / 50 |
| Power Source | – | 3 Phase 380-415V, 50Hz, 3 Phase 380V 60Hz |
| Inrush current (220/230/240v) | A | 5 |
| Max. running current | A | 15 |
| Power consumption (Cooling/Heating) | kW | 3.97 / 3.70 |
| Ref. Piping Size (Liquid/Gas) | Ø mm | 9.52 (3/8″) / 15.88 (5/8″) |
| Ref. Max Piping Length | m | Max. 100 |
| Vertical Height differences / Outdoor is higher/lower | m | Max. 30 / Max. 15 |
Schematics
